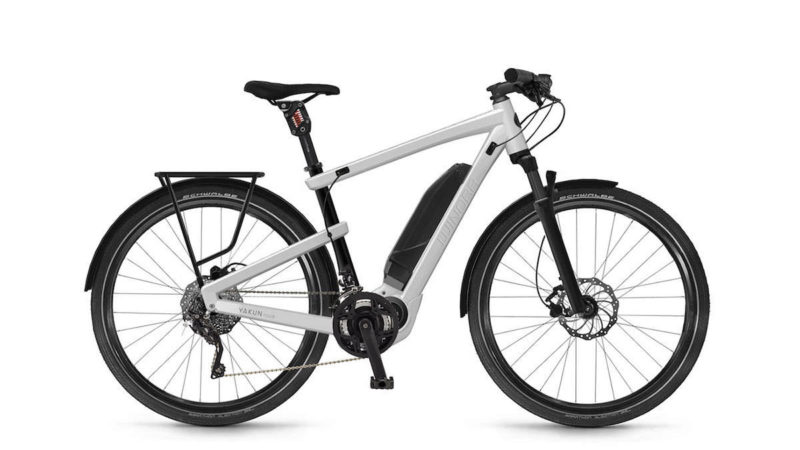

Winora Yakun Tour Electric Adventure Touring E-Bike Review
I tried this bike out along with a number of other e-bikes at an event.
The test involved riding a section of single track and then some obstacles (bridge and slalom) in an area of solid ground.
Technical Specifications
- Frame aluminium 6061, Gravity Casting Interface, hydroformed, thru-axle M12 (1.75) x 142mm
- Motor Yamaha PW-X System, 250W, 80Nm, 25km/h
- Display Yamaha LCD - X
- Batterie Yamaha Lithium Ion
- Charger Yamaha quick charger 4A
- Fork SR Suntour NCX-E45 LOR Lockout, air, Federweg: 60mm, aluminium steerer tube 1 1/8" - 1 1/2" tapered, thru-axle
- Derailleur Shimano Deore XT T781
- Derailleur Shimano Deore XT T8000, 20-turn
- Shifters Shimano Deore M610 rapid fire,
- Sprocket (rear) Shimano HG50, 11-36 teeth
- Chain KMC X10e
- Chainring FSA aluminum, 36-48
- Brake Magura MT4, aluminum
- Tyres Schwalbe Marathon Almotion, 55-584 puncture protection, reflective strips
- Rims Rodi BlackRock 23 disc, hollow rim, aluminum
- Spoke Stainless spokes, black
- Links XLC Ergobar, oversize
- Handles retro stitched
- Headset A-Head Alloy Tapered
- Saddle Winora Yukon, embossed
- Seatpost aluminium, Patent, 31.6mm
- Pedal VP 469, non-slip
- Stand Ursus Mooi, adjustable
- Headlights Lupine SL, 140 lux
- Rearlight P & W LED mini
- Dynamo via system battery
- Pannier carrier
- Porter Winora, XLC Carrymore
- Mudguards Double wall, aluminum
- Weight 23.6kg
- Colour Grey
- Max Speed 17mph assisted
- **Range **35-65 miles average
Description
The new Winora Yakun electric bikes come with Yamaha’s latest, lightest and most powerful PW-X mid-engine and 500 Wh battery.
The Yakun Tour has Magura Hydraulic Disc brakes and the proven Shimano Deore XT 20-speed groupset. Suntour NCX E45 forks for safety and riding comfort and each model has a unique feature, a Schulz G1, patent suspension seat post to even out the bumps on our British roads. The Yakun Tour is fitted with intensely powerful 1050 lumens Lupine SL headlights and integrated tail lights. Also, has an XLC Carrymore luggage rack and Aluminium mudguards.
The Yamaha PW-X Center mount unit (bottom bracket motor) drive unit is more compact, lighter, stronger: the new Yamaha PW-X definitely has the edge on its predecessor across the board. It has a “triple sensor” system is what holds the product concept of “smooth and powerful” in place. The three sensors are the: 1. a torque sensor that detects pedalling power, 2. a speed sensor that detects the bicycle’s speed, and 3. a crank sensor that detects the number of rotations through pedalling. By equipping the three sensors to the unit, the rider is supported by continuous assistance under every riding condition. A more sensitive freewheel and double the number of pawls should lead the cranks to engage much more rapidly and create a more direct and responsive ride as well as greater reliability in this sensitive area of electric bike motors.
The interface is much more robust yet even more compact, the new interface is controlled by an angular remote lever on the bars. It’s positioned between the stem and bars, much like the Shimano Steps.The LCD multi-function Drive Controller supports functions such as Drive control: 4 selectable assist modes, Battery capacity indicator, Assist power meter, Cycle computer, Range meter, Cadence meter, Clock, Removable display and USB connector.
The battery is a 500Wh Lithium-ion 36V battery with a Charging time: approx. 4.0hrs
Key Features
- PW-X Yamaha mid-engine and 500 Wh battery.
- Magura Hydraulic Disc brakes
- Shimano Deore XT 20-speed groupset.
- Suntour NCX E45 forks
- 1050 lumens Lupine SL headlight and integrated tail light.
They are currently on offer at 50Cycles (this isn’t a sponsored post).
The Yahama engine in this was the most powerful and solid feeling out of all the bikes that I tested.
One would expect that as a touring bike it would be capable of carrying a loaded bike and therefore need a bit more power.
